Palletizer

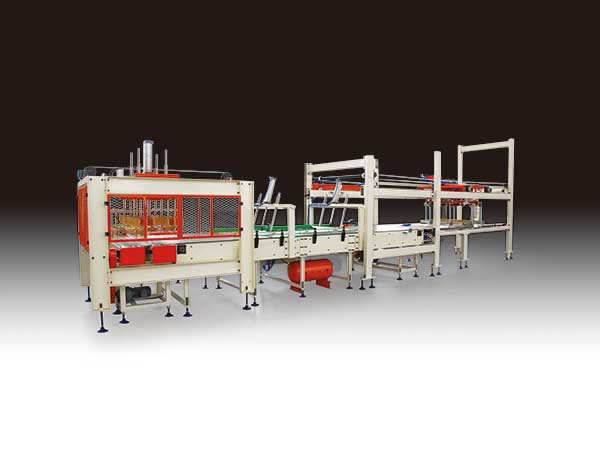

 Horizontal Push Style Palletizer, MPT12

The MPT12 series palletizer is available in floor-level and high-level infeed versions, and thus can meet your varied layout design demands. It is designed for automatic tray packing of cylindrical glass containers, and compatible with both narrow beck and wide mouth containers.

Due to high speed, the palletizing machine can meet the synchronous packaging demands of 10 double gob individual section machines. It upgrades the glass container packaging quality and improves production efficiency. It is an efficient replacement of conventional manual packaging equipment.

Technical specifications of the palletizer
Pallet size: 1200x1000x145 (mm) 1100x1100x145 (mm)
Partition board size: 1200x1000x5 (mm) 1100x1100x5 (mm)
Glass container body diameter: 50-90 (mm)
Glass container height: 90-350 (mm)
Stacking height: 800-2500 (mm)
Max. palletizing speed: 8,000-12,800 bottles/hour
Compressed air pressure: 0.35Mpa
Power supply: 380V/220V 50Hz
Power: 25Kw
Max. stacking weight: 1,200kg

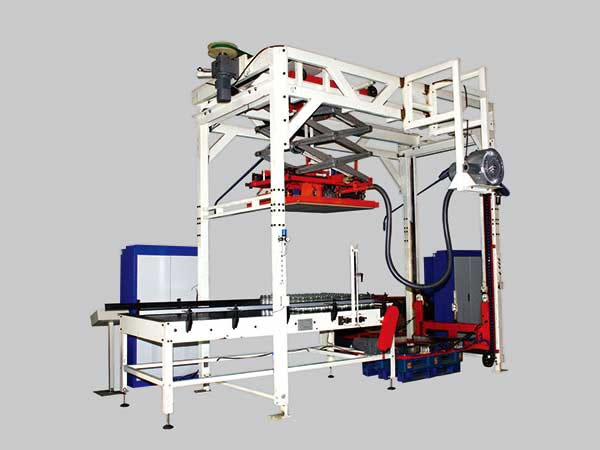

Gripper Style Palletizer, MZJ-12

This series of palletizer is available in gravity stacking and mechanical stacking versions. It can meet the synchronous packaging requirements of 10 double gob IS machines.

Due to small footprint, the palletizing equipment can be installed in workshops with limited space. It features great flexibility in layout design, and supports manual and automatic pallet placement.

Technical specifications of the palletizer
Pallet size: 1200x1000x145 (mm) 1100x1100x145 (mm)
Max. stacking height: 2100 (mm)
Glass container body diameter: 45-90 (mm)
Power: 5-20Kw (vary with working mode and layout design)
Compressed air pressure: 0.45Mpa
Rotary gripper: support 90° rotation
Available with a special gripper mechanism to handle bottles with long narrow necks.

Palletizer, HZ-12

The packaging machine features small installation area, and is ideal for workshops with limited spaces. It supports automatic and manual pallet placement.

Technical specifications of the palletiser
Pallet size: 1200x1000x145 (mm) 1100x1100x145 (mm)
Stacking height: 2100 (mm)
Glass container body diameter: 45-90 (mm)
Power: 5-20Kw (vary with working mode and layout design)
Compressed air pressure: 0.45Mpa
Rotary gripper: support 90° rotation
Available with a special gripper mechanism to handle bottles with long narrow necks.

Palletizer, TM21B

The palletizer is designed for automatic tray packing of long-necked or wide-mouth glass containers.

Technical specifications
Stacking height: 2100 mm
Speed: can meet the synchronous packaging demands of 10 double gob IS machines
Pallet size: 1200 x 1000 x 145, 1100x1100 x 145 (mm)
Power: 11 Kw
Compressed air pressure: 0.6 Mpa
Applicable glass container types: long necked bottles (air bag style gripper), wide mouth bottles (sucker style gripper)
