Bottle Handling Conveyor

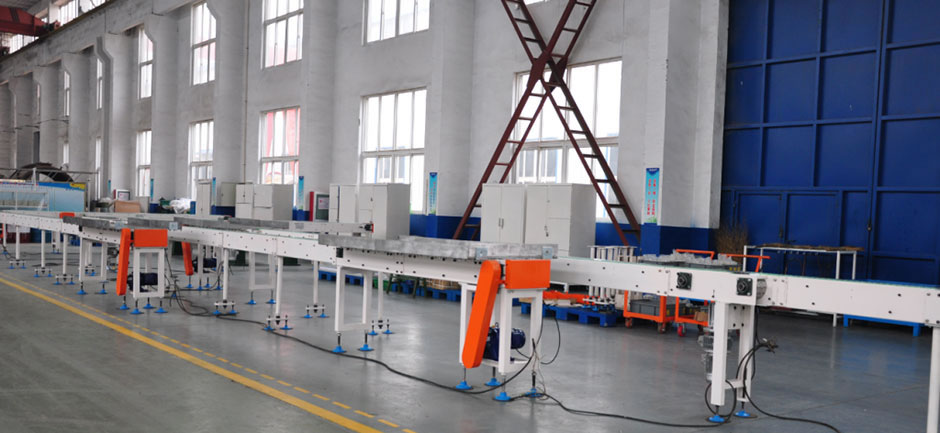

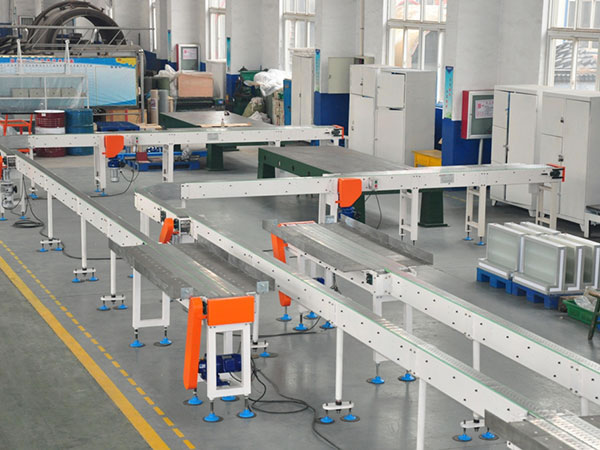

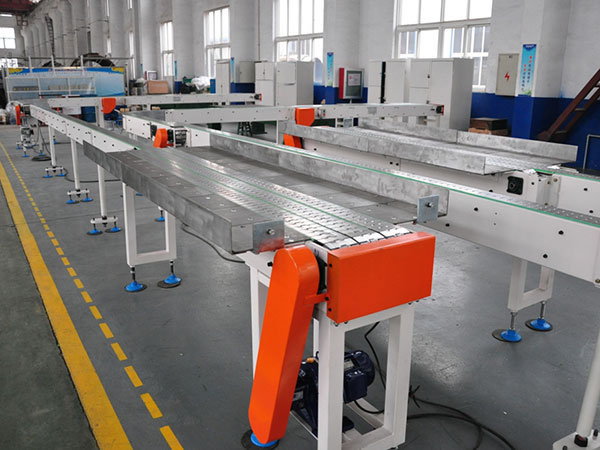

Linear Conveyor System

Usage
The bottle handling conveyor is designed for automatic bottle arrangement and continuous bottle conveying purposes during glass container production. It can also be used for the same purposes in related industries such as bottle filling, bottle packaging, etc. Synchronous automatic and manual inspection can be realized when detection positions are set on both sides of the straight conveying section.

Technical specifications
Structure of the bottle handling system can be custom designed to meet users’ individual requirements.

Conveyor width (mm): 1200, 1500, 1800, 2100, 2400, 2700, 3000, 3300, 3600, or customized
Voltage: 380V, 50Hz
Linear speed: 10m/Min -20m/Min
Max. liner speed: 20m/Min

Main structure features of the bottle handling conveyor
1. Modular design allows for arbitrary combination between functional units, thus adapting to different plane layout.
2. Relatively independent power and drive systems can satisfy different combining form.
3. The height of conveying chain can be adjusted in the range of 970 - 1050mm.
4. Conveying chain is made of high molecular material with low friction coefficient, and thus delivers high wear resistance.

Model list
-PG 3 rows, 1 direction
-PS 3 rows, 2 direction
-PZ 4 rows, 1 direction
-PGS multi-rows, 1 direction
-PP22 6 rows, 2 lines,1 direction
-PP27 multi-rows backward conveying,1 direction

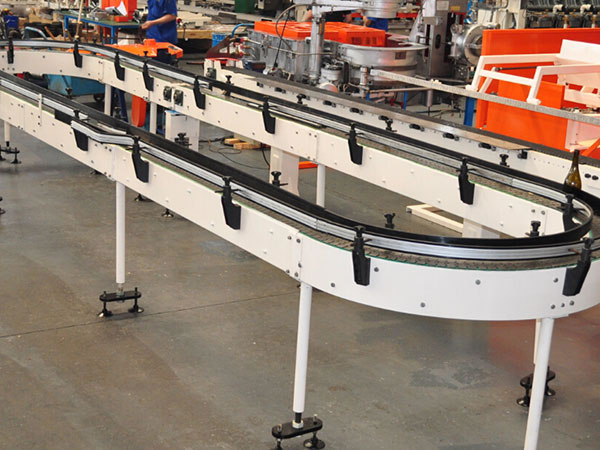

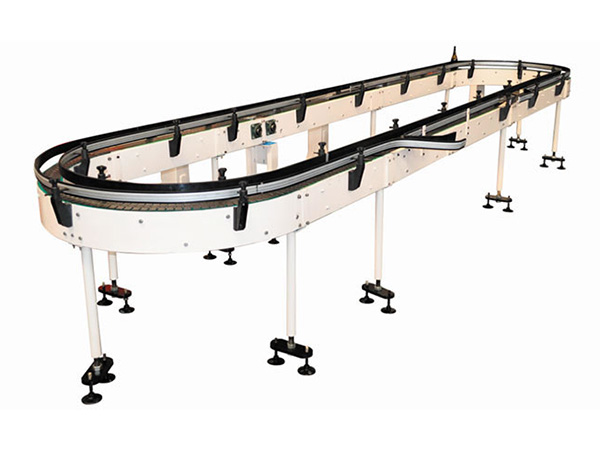

Circular Conveyor System

This kind of bottle handling conveyor mainly works as the bypass system of glass container inspection machines or manual inspection centers.
