Gob Feeder, BLD660/910 Series

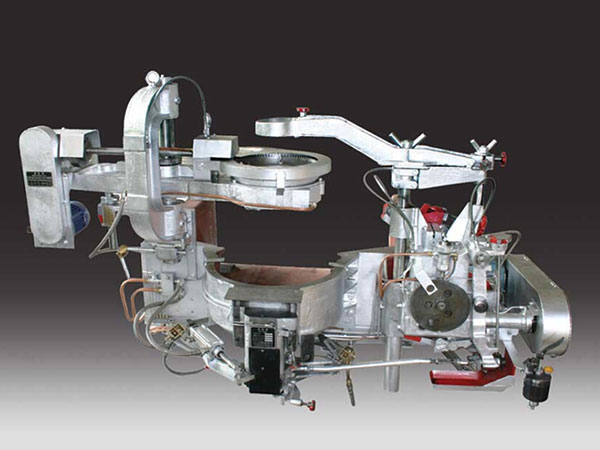

Gob Feeder, BLD660

The BLD660 series gob feeder is designed on the basis of the aging D41-66 through a series of improvements and innovations. It has become a standard configuration for the gob forming system of many popular models of individual section machines. It supports single gob and double gob production.

Advantages
Connecting rod style plunger and shear mechanisms using linear bearings
Electric synchronous drive unit
Air spring utilized for shear mechanism
Revolving tube mechanism controlled by a variable frequency drive to ensure stepless speed adjustment
Independent and reliable Bijur lubrication system

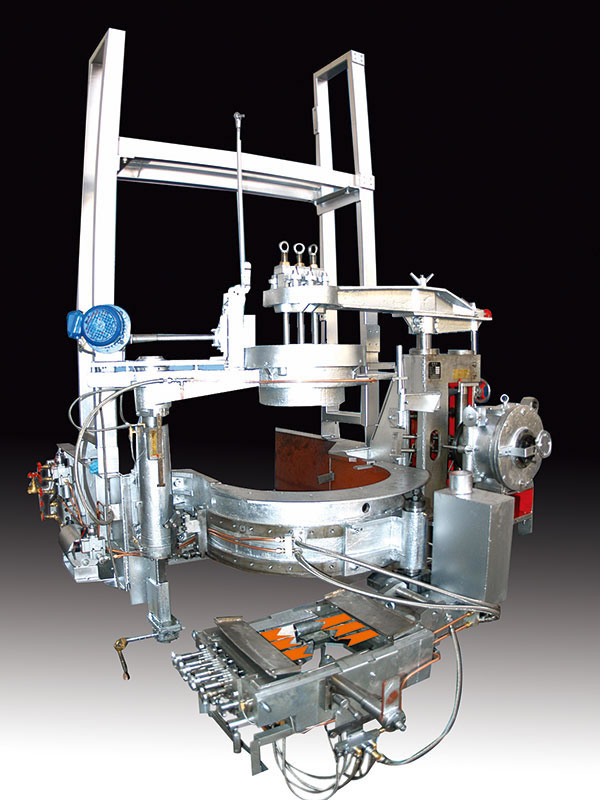

Gob Feeder, BLD910

This range of gob feeder is compatible with single gob and double gob glass container forming machines with 8 or 10 section configurations.

Advantages
Compact cylindrical epicyclic gearbox supporting 360° differential regulation
Employ linear bearings for the balanced type plunger mechanism
The shearing mechanism featuring enclosed gear and oil bath lubrication
New air spring for the high speed shearing mechanism
Positive infinitely variable system is employed for the revolving tube mechanism

Technical Specifications
Model Spout Size Spout depth Orifice Ring Cavity Capacity (t/day)
Type-660 360 (14") 152 (6") 5" SG, DG76 5-25
190 (7-1/2") 5" SG, DG76 5-25
410 (16") 190 (7-1/2") 5" SG, DG76 10-25
203 (8") 5" SG, DG76 12-30
6" SG, DG76 12-30
7" SG, DG110 12-30
460 (18") 203 (8") 7", 8" SG, DG, TG 15-35
Type-910 460 (18") 210 (8-1/4") 7", 8" SG, DG, TG 15-40
230 (9") 7", 8" SG, DG, TG 15-45
254 (10") 7", 8" SG, DG, TG 25-60
560 (22") 210 (8-1/4") 7". 8", 10" SG, DG, TG 25-50
230 (9") 7". 8", 10" SG, DG, TG 25-60
254 (10") 7". 8", 10" SG, DG, TG 35-70
278 (11") 7". 8", 10" SG, DG, TG 45-80
610 (24") 278 (11") 8", 10", 11" SG, DG, TG 50-100
330 (13") 8", 10", 11" SG, DG, TG 50-120
Type 660 Type 910
Speed Range 10 ~ 90 cuts per minutes 25 ~ 120 cuts per minutes
Weight Range Single gob: 30g to 2000g, Double gob: 30g to 500g Single gob: 100g to 2300g, Double gob: 50g to 1100g
Configurations Individual plunger mechanism with air assisting system Balanced type plunger mechanism
Variable speed revolving tube with bevel gear drive Variable speed revolving tube with bevel gear drive
Arcuate shear mechanism Arcuate shear mechanism with enclosed gear
Safety auto-retracting shear blade Safety auto-retracting shear blade
Shearing mechanism with air spring High speed shearing mechanism with air spring
Automatic lubrication system linked to IS machine lubrication system Automatic lubrication system linked to IS machine lubrication system
Accessories Accessories
Shear blade alignment fixture Shear Blade alignment fixture
Epicyclic gearbox supporting 360° differential adjustment
