Individual Section (IS) Machine for Glass Container Forming

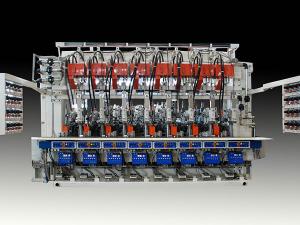

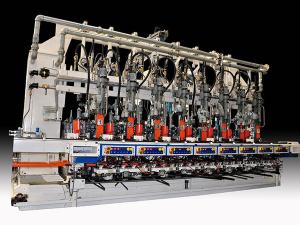

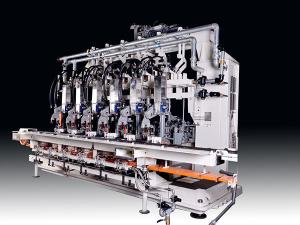

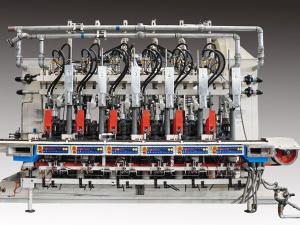

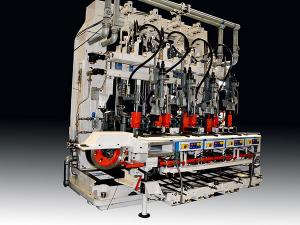

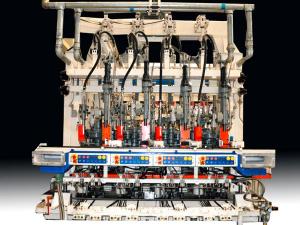

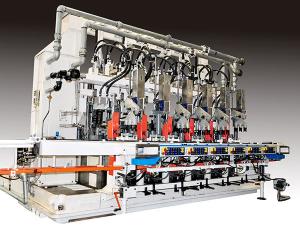

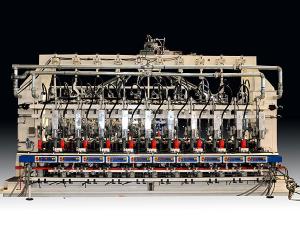

We have designed and developed a series of individual section machines for glass container forming. Included are single gob, double gob and triple gob IS machines.

Comparison among Different Types of Individual Section Machines
IS machine model and type Max. Container Body Diameter Min. Height Under Finish Min. Height Under Finish with VertiFlow Max. Finish Diameter
VertiFlow® mould cooling system Stack cooling without vacuum Vacuum cooling Blow and blow method Press and blow method Narrow neck press and blow Blow and blow method Press and blow method Narrow neck press and blow Blow and blow method Press and blow method Narrow neck press and blow
HD6.8 single gob series 156mm 178mm 170mm 61mm 74mm - 315mm 240 mm - 50mm 90mm -
HD4.6.8.10-108 double gob series 76mm 90mm 80mm 57mm 40mm 40mm 301mm 257mm 257mm 48mm 83mm 38mm
HD4.6.8.10-108×2 triple gob series 76mm 90mm 76mm 105mm 86mm 86mm 287mm 268mm 268mm 48mm 70mm 38mm
HD4.6.8.-127 double gob series 95mm 102mm 95mm 73mm 55mm 55mm 325mm 290mm 290mm 48mm 90mm 38mm
HD4.6.8.10-140 double gob series 102mm 111mm 102mm 68mm 58mm 58mm 343mm 228mm 228mm 48mm 90mm 38mm
HD4.6.8-140DS double gob series 156mm 178mm 170mm 121mm 121mm - 380mm 326mm - 48mm 120mm -
HGD 4.6 single gob series 156mm 178mm 170mm 61mm 74mm - 315mm 240mm - 48mm 120mm -
HGD4.6 -108 double gob series 76mm 90mm 80mm 57mm 40mm - 301mm 257mm - 48mm 38mm 38mm
