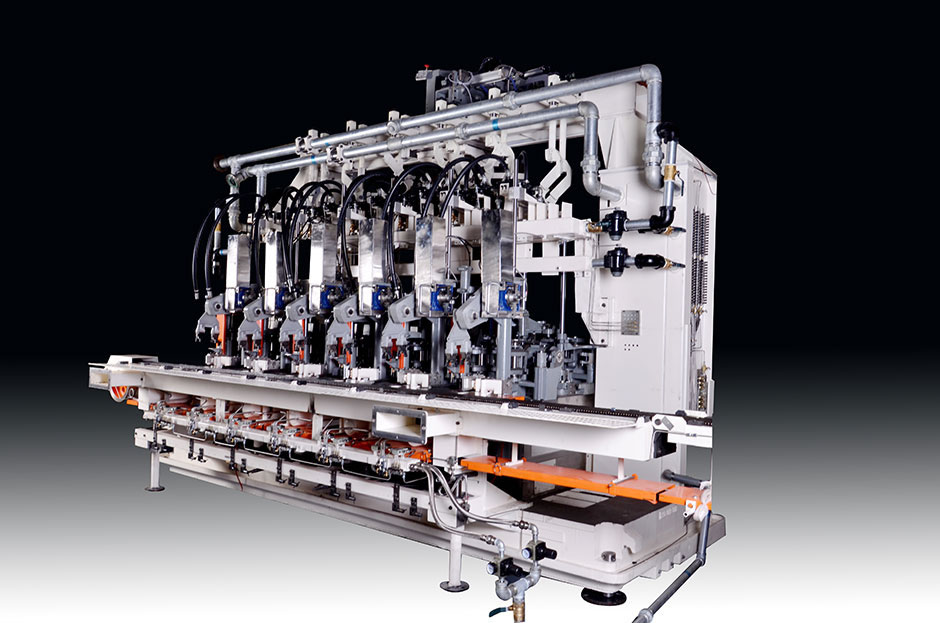

Double Gob Individual Section (IS) Machine, HS4.6.8.10-108

Configurations of the Double Gob Individual Section Machine
FLEXLINE Control System
Servo Gob Distributor with Funnel Guide
Delivery Suspension System, Air Pad Scoops
Linkages in Oil System for Blank and Blow Molds
Blank Mold with Protecting Brackets
Constant Cushion Invert Mechanism Optional
Servo Electric Invert Mechanism
VertiFlow Blow Mold Cooling Mechanism
Bottom Plate Mechanism with Vacuum-Assistant Forming Optional
Quick Change Plunger Mechanism
Constant Cushion Take-out Mechanism Optional
Servo Electric Take-out Mechanism
Quick Change Takeout Tong
Wide Uprights for Machine
26# Electro-Pneumatic Valve Block (EPVB)
Conveyor with Silent Chain
Electronic Pusher, Double Axes
On/off Control Blank Mold Cooling Mechanism Optional
Timing and Rationing Automatic Lubrication System
Process Change from Double Gob to Triple Gob (159)
Glass Container Forming Methods
Blow and Blow
Press and Blow
Narrow Neck Press and Blow
Glass Container Specifications
Blow and Blow Press and Blow Narrow Neck Press and Blow
Ware Range
Maximum Body Diameter with VertiFlow 76mm
Maximum Body Diameter (Stack Cooling without Vacuum) 90mm
Maximum Body Diameter with Vacuum 76mm
Minimum Height under Finish 105mm 86mm
Maximum Height under Finish (with VertiFlow) 287mm 268mm
Maximum Finish Diameter 48mm 70mm 38mm
Consumptions of the Individual Section Machine
Media Pressure(Bar) Consumption Per Section
(Double Gob)
(Nm3/min)
Consumption Per Section
(Triple Gob)
(Nm3/min)
Low Pressure Operating Air 2.1 1.0 1.0
High Pressure Operating Air 3.1 1.0 1.0
High Pressure Air (Pilot Air of EPVB) 4.0 0.003 0.003
Forming Air (Blow and Blow) 3.1 2.4 2.7
Forming Air (Press and Blow) 3.1 3.2 3.8
Vacuum 150mbar 0.2 ~ 0.3 0.2 ~ 0.3
Stack Cooling only 1200 mm H2O 95 90
VertiFlow Blowside and Blank Stack 1200 mm H2O 75 70
Conveyor 600 mm H2O 12 12
Lubrication Oil 80 1.3 L/day 1.3 L/day
Cooling Water 2.1 15 L/min 15 L/min

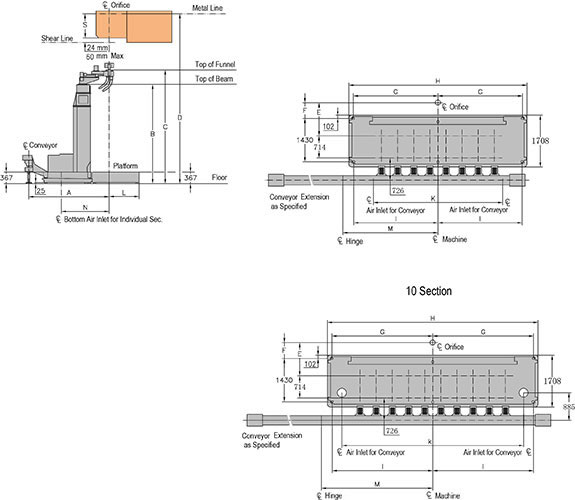

Installation Dimension of the Glass Container Forming Machine
Feeder BLD89 × 2
S 400.5
IS Machine Section Number / Dimension 4 6 8 10
mm mm mm mm
A 2608 2608 2608 2608
B 3369 3369 3369 3602
C (Delivery Center Distance 89mm) 3861 3861 3861 4053
D (Recommended) 5500 5500 5500 5700
E 1168 1168 1168 1168
F 587 587 587 587
G 1730 2264 2798 3332
H 3660 4828 5896 6964
I 1716 2250 2784 3318
K 2306 3236 4304 6010
L 1402 1402 1402 1402
M 2292 2826 3360 3430
N 1521 1521 1521 1311
Machine Weight 17T 23T 29T 48T
