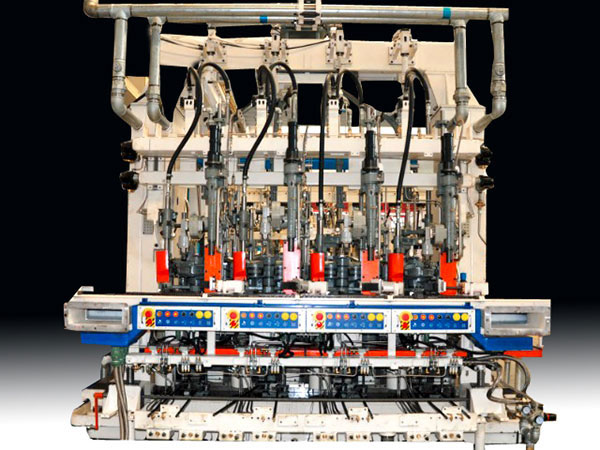

Single Gob Individual Section (IS) Machine, HGD4.6

Configurations of the Single Gob Individual Section Machine
FLEXLINE Control System
Servo Gob Distributor
Mechanical Gob Distributor Optional
New Type of Delivery System
Linkages in Oil System for Blank and Blow Molds
Blank Mold with Protecting Brackets
Constant Cushion Invert Mechanism
Servo Electric Invert Mechanism Optional
VertiFlow Blow Mold Cooling Mechanism
Bottom Plate Mechanism with Vacuum-Assistant Forming Optional
Quick Change Plunger Mechanism
Constant Cushion Take-out Mechanism
Servo Electric Take-out Mechanism Optional
Quick Change Takeout Tong
Quick Change Blowhead Mechanism
Narrow Uprights for Machine
21# Electro-Pneumatic Valve Block (EPVB)
Conveyor with Belt
Standard Cam Pusher
Conveyor with Silent Chain Optional
Electronic Pusher, Double Horizontal Cylinders Optional
On/off Control Blank Mold Cooling Mechanism Optional
Timing and Rationing Automatic Lubrication System
Glass Container Forming Methods
Blow and Blow
Press and Blow
Glass Container Specifications
Blow and Blow Press and Blow
Ware Range
Maximum Body Diameter with VertiFlow 156mm
Maximum Body Diameter (Stack Cooling without Vacuum) 178mm
Maximum Body Diameter with Vacuum 170mm
Minimum Height under Finish 61mm 74mm
Maximum Height under Finish (with VertiFlow) 315mm 240mm
Maximum Finish Diameter 48mm 120mm
Consumptions of the Single Gob IS Machine
Media Pressure(Bar) Consumption per Section Nm 3 /min
Low Pressure Operating Air 2.1 1.0
High Pressure Operating Air 3.1 1.0
High Pressure Air (Pilot Air of EPVB) 4.0 0.003
Forming Air (Blow and Blow) 3.1 1.8
Forming Air (Press and Blow) 3.1 2.6
Vacuum 150mbar 0.2 ~ 0.3
Stack Cooling only 1200 mm H2O 75
VertiFlow Blowside and Blank Stack 1200 mm H2O 50
Conveyor 600 mm H2O 10
Lubrication Oil 80 1.3 L/day
Cooling Water 2.1 15 L/min

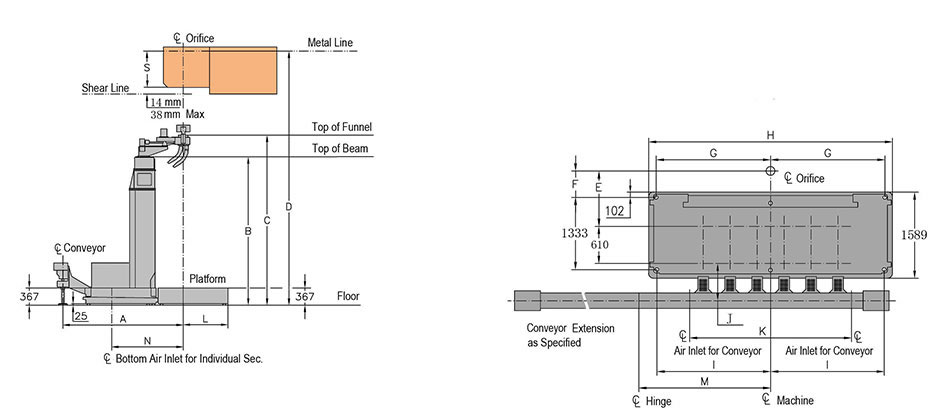

Installation Dimension of the Glass Bottle Making Machine
Feeder and Spout Dimension BLD660 Shallow BLD660 Standard Spout BLD660 Deep Spout
S 262 314 364
IS Machine Section Number / Dimension 4 6
mm mm
A (Belt) 2298 2298
A (Chain) 2363 2363
B 3169 3169
C 3519 3519
D (Recommended) 4700 4700
E 1168 1168
F 568 568
G 1451 1985
H 3202 4270
I 1437 1971
J (Belt) 520 520
J (Chain) 585 585
K (Belt) 2094 3164
K (Chain) 2168 3236
L 596 596
M (Belt) 1617.5 2152.5
M (Chain) 2292 2826
N 1502 1502
Machine Weight 15T 20T
