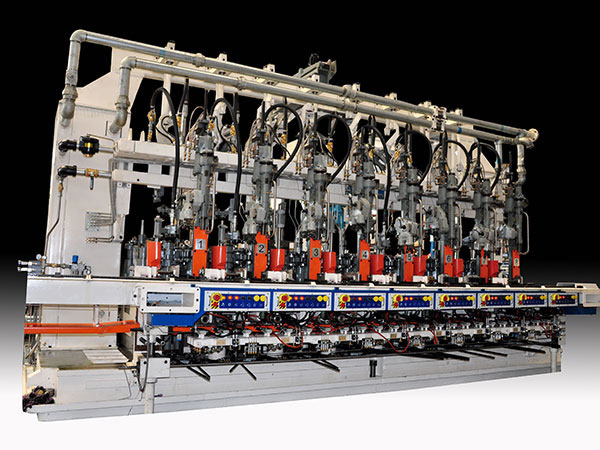

Double Gob Individual Section (IS) Machine, HS4.6.8-127

Standard Configurations of the Double Gob Individual Section Machine
FLEXLINE Control System
Servo Gob Distributor
New Type of Delivery System
Linkages in Oil System for Blank and Blow Molds
Blank Mold with Protecting Brackets
Constant Cushion Invert Mechanism
VertiFlow Blow Mold Cooling Mechanism
Quick Change Plunger Mechanism
Quick Change Blowhead Mechanism
Wide Uprights for Machine
21# Electro-Pneumatic Valve Block (EPVB)
Quick Change Take-out Tong
Conveyor with Silent Chain
Timing and Rationing Automatic Lubrication System

Optional Configurations of the Double Gob IS Machine
Bottom Plate Mechanism with Vacuum-Assistant Forming Independently optional
Constant Cushion Take-out Mechanism Optional
Servo Electric Take-out Mechanism Optional
Electronic Pusher, Double Horizontal Cylinders Optional
Servo Electric Pusher Optional
On/off Control Blank Mold Cooling Mechanism Independently optional

Glass Container Forming Methods
Blow and Blow
Press and Blow
Narrow Neck Press and Blow

Glass Container Specifications
Blow and Blow Press and Blow
Ware range
Maximum Body Diameter with VertiFlow 95mm
Maximum Body Diameter (Stack Cooling without Vacuum) 102mm
Maximum Body Diameter with Vacuum 95mm
Minimum Height under Finish 73mm 55mm
Maximum Height under Finish (with VertiFlow) 325mm 290mm
Maximum Finish Diameter 48mm 90mm
Consumptions of the Individual Section Machine
Media Pressure (Bar) Consumption per Section Nm3/min
Low Pressure Operating Air 2.1 1.0
High Pressure Operating Air 3.1 1.0
High Pressure Air (Pilot Air of EPVB) 4.0 0.003
Forming Air (Blow and Blow) 3.1 2.0
Forming Air (Press and Blow) 3.1 2.8
Vacuum 150mbar 0.2 ~ 0.3
Stack Cooling Only 1200mm H2O 75
VertiFlow Blowside and Blank Stack 1200mm H2O 55
Conveyor 600 mm H2O 10
Lubrication Oil 80 1.3 L/day
Cooling Water 2.1 15 L/min
Installation Dimension of the Glass Container Forming Equipment
Feeder BLD910
S 400.5
IS Machine Section Number / Dimension 4 6 8
mm mm mm
A 2389 2389 2389
B 3169 3169 3169
C (Delivery Center Distance 110mm ) 3617 3617 3617
D (Recommended) 5000 5000 5000
E 1158 1158 1158
F 568 568 568
G 1730 2264 2798
H 3660 4828 5896
I 1716 2250 2784
K 2306 3236 4304
L (Standard) 596 596 596
L (With Receivers) 1296 1296 1296
M 2292 2826 3360
N 1502 1502 1502
Machine Weight 16T 23T 28T
