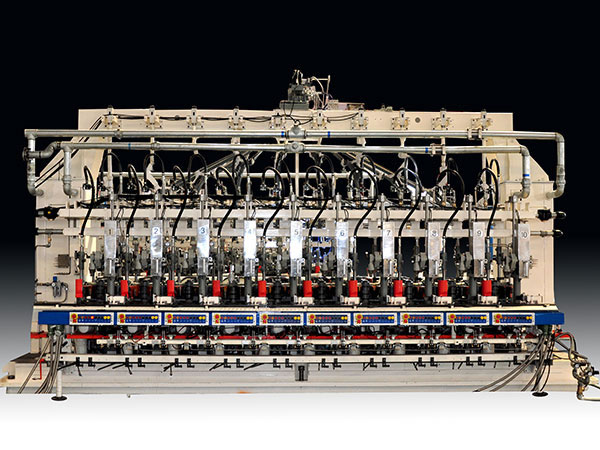

Single Gob Individual Section (IS) Machine, HD8.10

Standard Configurations of the Single Gob Individual Section Machine
FLEXLINE Control System
New Type of Delivery System
Linkages in Oil System for Blank and Blow Molds
Blank Mold with Protecting Brackets
VertiFlow Blow Mold Cooling Mechanism
Quick Change Plunger Mechanism
Quick Change Take-out Tong
Quick Change Blowhead Mechanism
Wide Uprights for Machine
21# Electro-Pneumatic Valve Block (EPVB)
Conveyor with Silent Chain
Electronic pusher
Timing and Rationing Automatic Lubrication System

Optional Configurations of the Single Gob IS Machine
Servo Gob Distributor
Mechanical Gob Distributor
Constant Cushion Invert Mechanism
Servo Electric Invert Mechanism
Constant Cushion Take-out Mechanism
Servo Electric Take-out Mechanism
Bottom Plate Mechanism with Vacuum-Assistant Forming (independently optional)

Glass Container Specifications
Ware Range Blow and blow Press and blow
Ware weight 30g~1200g 30g~1000g
Maximum Body Diameter with VertiFlow 150mm
Maximum Height under Finish (with VertiFlow) 315mm 240mm
Maximum Finish Diameter 50mm 90mm
Consumptions of the Individual Section Machine
Media Pressure (Bar) Consumption per Section
m3/min
(6 sections)
Consumption per Section
m3/min
(8 sections)
Low Pressure Operating Air 2.1 13.5 18
High Pressure Operating Air (blow and blow) 2.8~3.1 2.5 3.4
High Pressure Operating Air (press and blow) 2.8~3.1 9.7 12.9
High Pressure Air (Pilot Air of EPVB) 3.1 0.003
Vacuum 850mbar 4.7 6.3
Lubrication Oil 80 7.5 L/day 10 L/day
Cooling Water 2.1 10 L/min 10 L/min

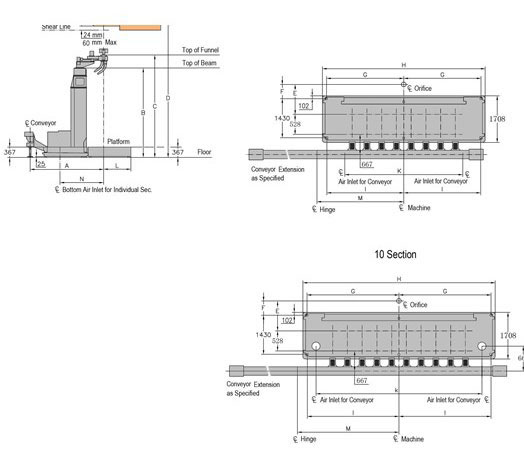

Installation Dimension of the Glass Container Forming Machine
Feeder 910SG
S 400.5
IS Machine Section Number / Dimension 6 8
mm mm
A (silent chain) 2362 2362
B 3269 3269
C 3510.5 3510.5
D 3700 3700
E 1168 1168
F 567 567
G 2264 2798
H 4828 5896
I 2250 2784
