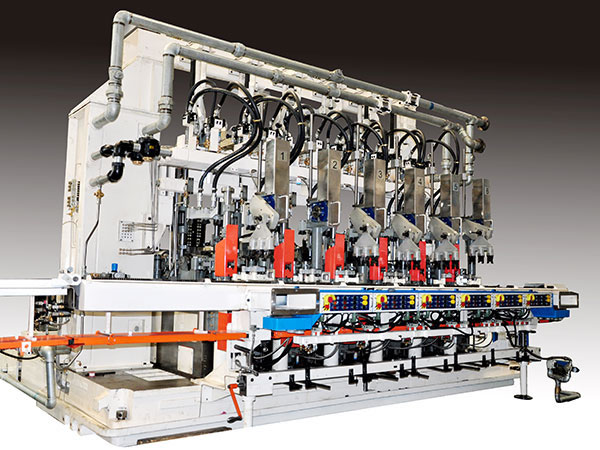

Triple Gob Individual Section (IS) Machine, HD4.6.8.10-108×2

Standard Configurations of the Triple Gob Individual Section Machine
FLEXLINE Control System
Servo Gob Distributor
New Type of Delivery System
Linkages in Oil System for Blank and Blow Molds
Blank Mold with Protecting Brackets
Quick Change Take-out Tong
Quick Change Blowhead Mechanism
Wide Uprights for Machine
VertiFlow Blow Mold Cooling Mechanism
Bottom Plate Mechanism with Vacuum-Assistant Forming
Quick Change Plunger Mechanism
Conveyor with Silent Chain
Timing and Rationing Automatic Lubrication System

Optional Configurations of the Triple Gob IS Machine
Constant Cushion Invert Mechanism
Servo Electric Invert Mechanism
Constant Cushion Take-out Mechanism
Servo Electric Take-out Mechanism
21# Electro-Pneumatic Valve Block (EPVB)
26# EPVB
Electronic Pusher, Double Horizontal Cylinders
Servo Electric Pusher
On/off Control Blank Mold Cooling Mechanism

Glass Container Forming Methods
Blow and Blow
Press and Blow
Narrow Neck Press and Blow

Glass Container Specifications
Blow and Blow Press and Blow Narrow Neck Press and Blow
Ware Range
Maximum Body Diameter with VertiFlow 76mm
Maximum Body Diameter (Stack Cooling without Vacuum) 90mm
Maximum Body Diameter with Vacuum 80mm
Minimum Height under Finish 57mm 40mm
Maximum Height under Finish (with VertiFlow) 301mm 257mm
Maximum Finish Diameter 48mm 83mm 38mm
Consumptions of the Individual Section Machine
Media Pressure (Bar) Consumption per Section Nm3/min
Low Pressure Operating Air 2.1 1.0
High Pressure Operating Air 3.1 1.0
High Pressure Air (Pilot Air of EPVB) 4.0 0.003
Forming Air (Blow and Blow) 3.1 1.8
Forming Air (Press and Blow) 3.1 2.6
Vacuum 150mbar 0.2 ~ 0.3
Stack Cooling Only 1200mm H2O 75
VertiFlow Blowside and Blank Stack 1200mm H2O 50
Conveyor 600 mm H2O 10
Lubrication Oil 80 1.3L/day
Cooling Water 2.1 15L/min

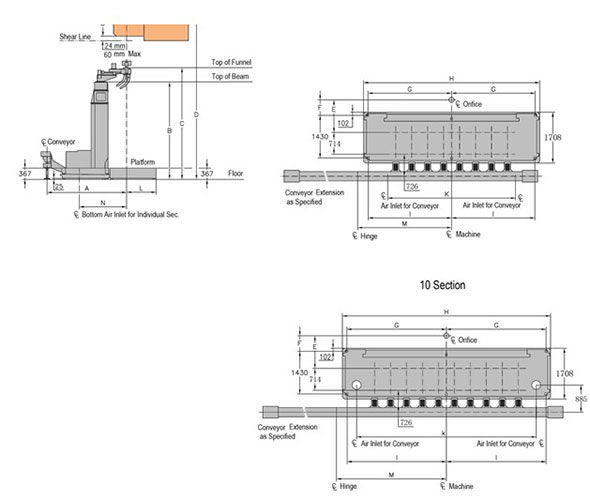

Installation Dimension of the Glass Container Forming Equipment
Feeder BLD910
S 400.5
IS Machine Section Number / Dimension 4 6 8 10
mm mm mm mm
A 2363 2363 2363 2363
B 3274 3274 3274 3515
C Delivery Center Distance 76mm 3752 3752 3752 3993
Delivery Center Distance 110mm 3722 3722 3722 3963
D (Recommended) 5000 5000 5000 5300
E 1168 1168 1168 1168
F 568 568 568 568
G 1730 2264 2798 3332
H 3660 4828 5896 6964
I 1716 2250 2784 3318
K 2306 3236 4304 6010
L (Standard) 596 596 596 596
L (With Receivers) 1296 1296 1296 1296
M 2292 2826 3360 3430
N 1502 1502 1502 1292
Machine Weight 16T 23T 28T 44T
