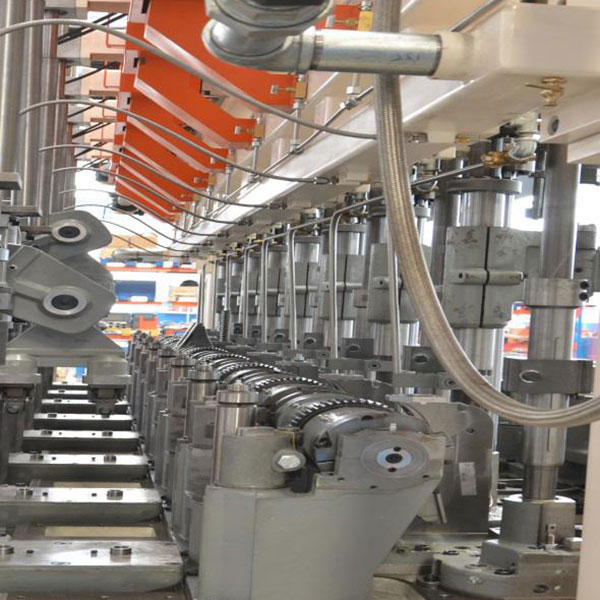

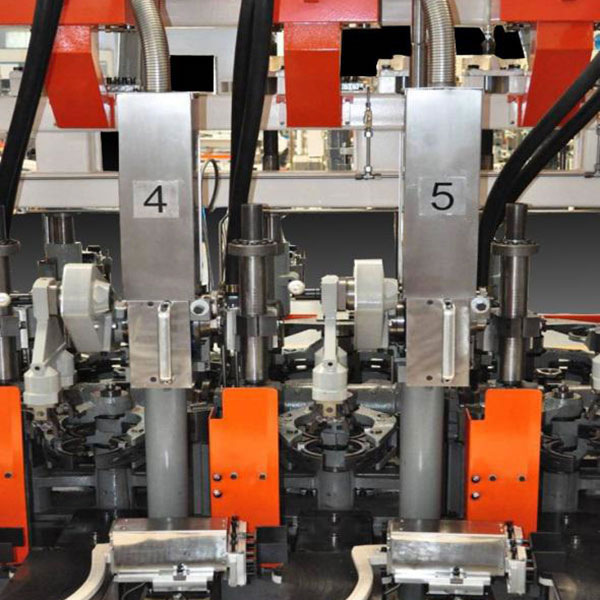

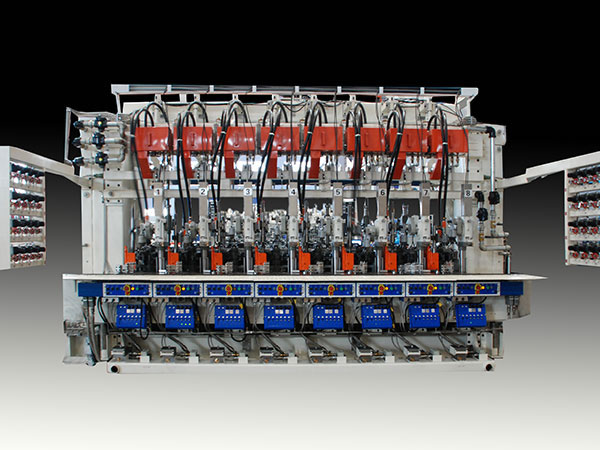

Double Gob Individual Section (IS) Machine, CIS Series

Standard Configurations of the Double Gob Individual Section Machine
Control System
Integrated Drive System
Servo Gob Distributor
Delivery Suspension system
Quick Change Plunger Mechanism
Quick Change Accessories
Vertiflow Blowside Cooling
Constant Cushion Invert Mechanism
Constant Cushion Takeout Mechanism
Servo Electric Takeout Mechanism
Conveyor with Silent Chain
Servo Pusher Mechanism
High/low Deadplate Cooling
Automatic Lubrication System

Optional Configurations of the Double Gob IS Machine
FlexLS Control system
555/565 Feeder
Flexpusher

Consumptions of the Glass Container Forming Machine
Consumption per section (Nm3/min)
Media Pressure Bar CIS 4 1/4" CIS 5" CIS 5-1/2" CIS 6-1/4"
Single Gob / Double Gob Triple Gob Single Gob / Double Gob Triple Gob Single Gob / Double Gob Single Gob / Double Gob Triple Gob
Low Pressure Operating Air 2.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0
High Pressure Operating Air 3.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Forming Air (B&B) 3.1 1.8 1.8 2.0 2.0 2.2 2.4 2.7
Forming Air (P&B) 3.1 2.6 2.6 2.8 2.8 3.0 3.2 2.8
Vacuum 150m bar 0.2~0.3 0.2~0.3 0.2~0.3 0.2~0.3 0.2~0.3 0.22-0.3 0.25~0.3
Cooling Air Stack Only 1200mm H2O 75 60 75 65 90 95 90
VertiFlow Blowside & Blank Stack 1200mm H2O 50 40 55 45 60 75 70
VertiFlow Blank & Blowside 1200mm H2O 35 N/A 40 30 45 60 55
VertiFlow Blowside 1200mm H2O 20 9 23 9 26 31 23
Conveyor 600 mm H2O 10 10 10 10 12 12 12
Lubrication Oil 80 1.3 litre/day 1.3 litre/day 1.3 litre/day 1.3 litre/day
Cooling Water 2.1 15 litre/min 15 litre/min 15 litre/min 15 litre/min
