Dry Board Section Conveying Equipment

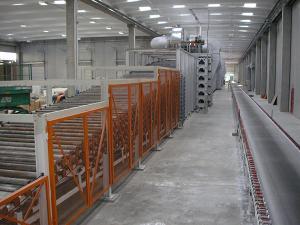

    1. The unloading system is a multi-deck conveying system, and features the same deck number with the dryer.
      It is designed with a cushion device to prevent damages to gypsum board ends caused by accidental dropping.

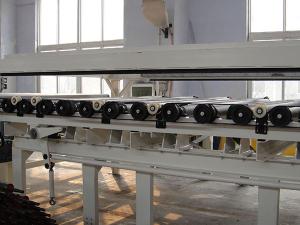

    1. The accumulation roller conveyor serves as the connection between the dryer unloading system and the second cross conveyor. It accepts the gypsum board which is delivered from the output end of every deck of the unloading system.

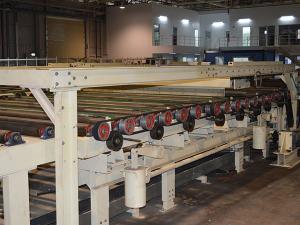

    1. The cross conveyor is mainly used to horizontally transfer the dry plasterboards to the next step. When the downstream machines are in trouble, it will carry the gypsum boards to the roller transfer conveyor.

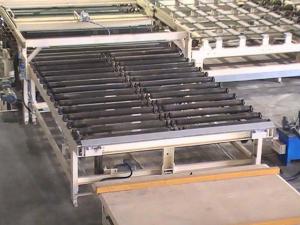

    1. The roller transfer conveyor is used for temporarily storage of dry gypsum boards when the cross conveyor’s downstream equipment has a failure. It thus can prevent shutdown or shorten the breakdown time of the gypsum board production line.

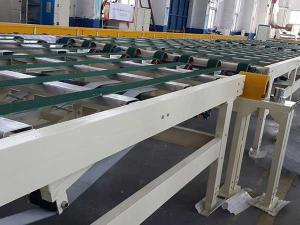

    1. The accumulation conveyor is a kind of belt conveyor, with anti-slippage belt and flat belt for option. It is installed between the dry board cross conveyor and the gypsum board booker.

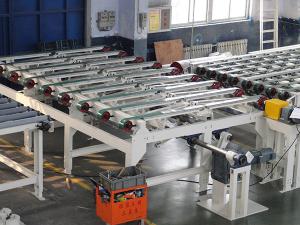

    1. The gypsum board booker functions to handle the gypsum boards delivered from the cross conveyor. It enables the gypsum boards to stand up in face to face before sending them to the edge sawing machine.
    1. One saw blade of the edge cutting machine is fixed. The other one is movable along the slide way so as to allow for cutting width adjustment.

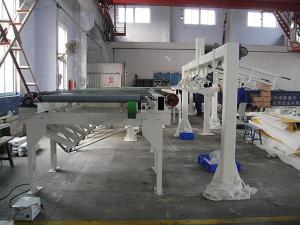

    1. The stacking table feeder features firm and aesthetical structure design, as well as stable and smooth running. The feeding speed is adjustable. The feeding system enables the gypsum boards to stop in an exact point, so as to ensure well-organized stacking.
