Wet Board Section Conveying Equipment

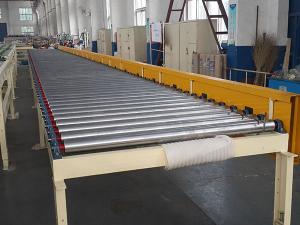

    1. The length of the belt over roller conveyor is designed according to the production capacity of gypsum board production line. The conveying system is driven by a variable frequency motor.
    1. Protective cover is available on the drive side, providing the roller conveyor with enhanced safety.
      The rollers for the conveying system are typically fabricated from chrome plated carbon steel. Upon request, we can also supply stainless steel or rubber coated carbon steel rollers.

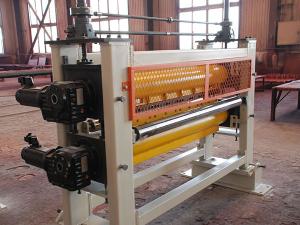

    1. The cut to length machine integrates a top and a bottom knife shaft which are independently driven by servo motors. The height of top knife shaft is manually adjusted via a screw jack.

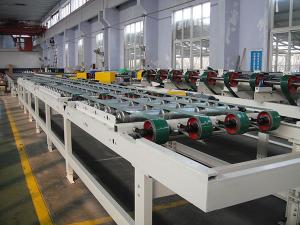

    1. The timing belt conveyor acts to deliver a single or multiple gypsum boards in an accelerated speed to the cross conveyor. It features stable and smooth operation, and can exactly meet the demands of following manufacturing steps.

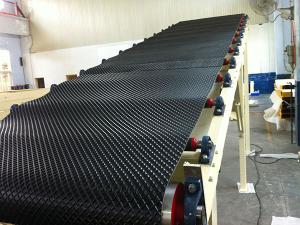

    1. The roller bed belt conveyor is an incline conveyor to lift the rejected gypsum boards to a certain height, thus delivering them to the designated area. The wide PVC belt with great anti slipping performance effectively avoids rotation in reversed direction.

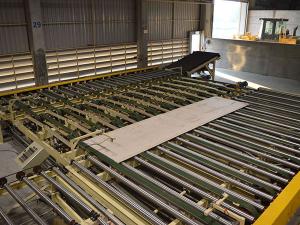

    1. Using three sections of belt conveyor, the cross conveyor allows for simple adjustment of the gap between two gypsum boards. With the demand for foundation pit construction, the equipment installation is convenient and the installation cost is largely reduced.

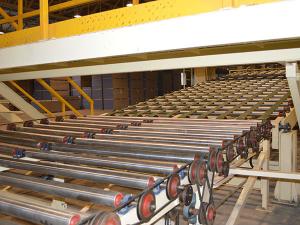

    1. The approaching roller conveyor is a conveying system with a single deck of conveyor rollers. It moves the gypsum board from the cross conveyor to the gypsum board dryer feeder.

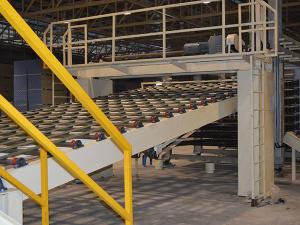

    1. The feeding system uses a belt conveyor for wet gypsum board delivering, and the belt is driven by a variable frequency motor.
