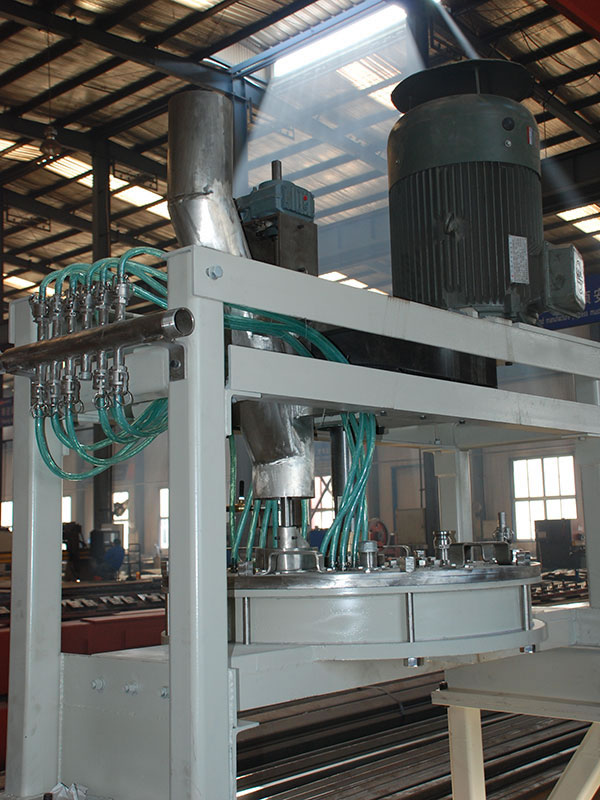

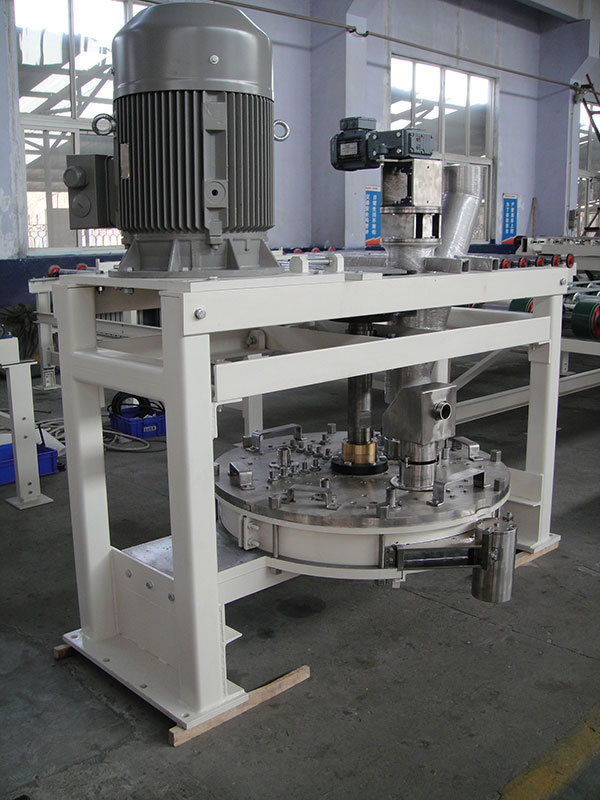

Pin Mixer

The pin mixer is used to mix the raw materials for plasterboard production. It supports discharging the well mixed materials onto a vibration table.

Features
1. The industrial mixer features uniform mixing, stable output and little agglomeration.
2. All parts in the mixing chamber are chrome plated, and the chrome plating thickness is up to 0.25mm, and the surface is polished. This greatly extends the service life of these parts.
3. All wearing parts are interchangeable and universal, and thus the mixing machine is easy for maintenance.
4. Effective in preventing machine blocking even in abnormal circumstances.

SB1507AJ-0 Pin Mixer for Paper-faced Gypsum Board Production Line
Discharge hole height: 1089mm
Overall height: 2095mm
Roller bed conveying speed: max. 120m/min
Belt conveying speed: max. 120m/min
Belt reducer: K57DRS90M4/V-A
Power supply: 400V/50Hz

Pin Mixer Operating Environment
Working temperature: -5℃~50℃
Storage temperature: -5℃~50℃
Relative humidity: 90%, without condensing
Altitude: ≤1000m
